Welding electrodes Monolith M-347

AWS A5.4: E347-16
CSA W48:E347-16
EN ISO 3581-А-E 19 9 Nb R 1 2
Terms of use
  • welding is carried out in all spatial positions with direct current of reverse polarity or alternating current from a transformer with an idle voltage of 50±5 V;
  • welding should be performed in a short arc without transverse oscillations.
Special properties
  • excellent mechanical properties of the deposited metal and increased corrosion resistance in aggressive environments at temperatures of up to 450 °C (842°F);
  • chigh welding and technological properties, low spatter, easy slag removal and seam formation with a smooth transition to the base metal were noted.
Monolith M-347 electrodes are designed for welding of austenitic corrosion-resistant steels AISI304, AISI347, etc., operating in aggressive environments at temperatures of up to 450 °C (842°F). They are used for welding of pressure vessels, pipelines, and equipment parts of the food and petrochemical industries, power engineering and energy industries.
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,0 (5/64)300 (11,8)85 – 861 (2.2)
2,5 (3/32)350 (13,8)43 – 461 (2.2)
3,0 (1/8)350 (13,8)30 – 321 (2.2)
3,2 (1/8)350 (13,8)28 – 311 (2.2)
4,0 (5/32)350 (13,8)18 – 191 (2.2)

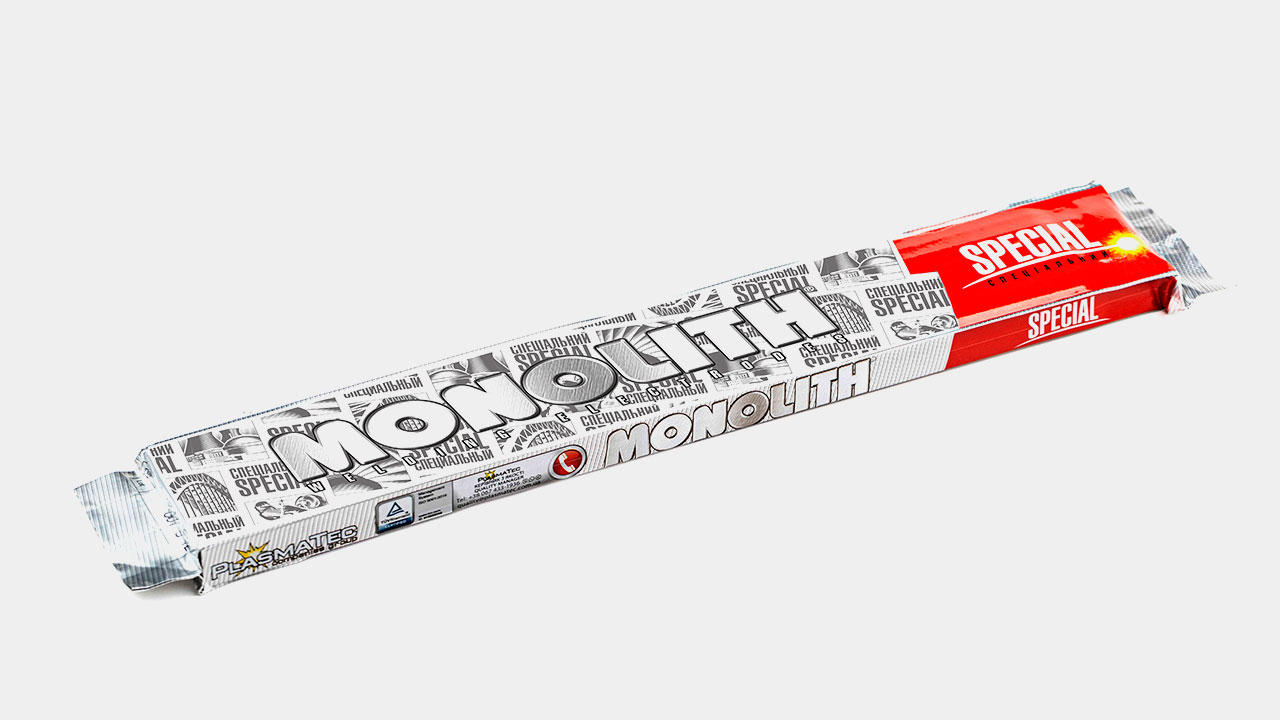

Monolith 347-16 Ø 2.0 (5/64) mm (in) are packed in mini-tubes of 8 pcs.; Ø 2.5 (3/32); Ø 3.0 (1/8); Ø 3.2 (1/8); Ø 4.0 (5/32) mm (in) are packed in mini-tubes of 3 pcs.

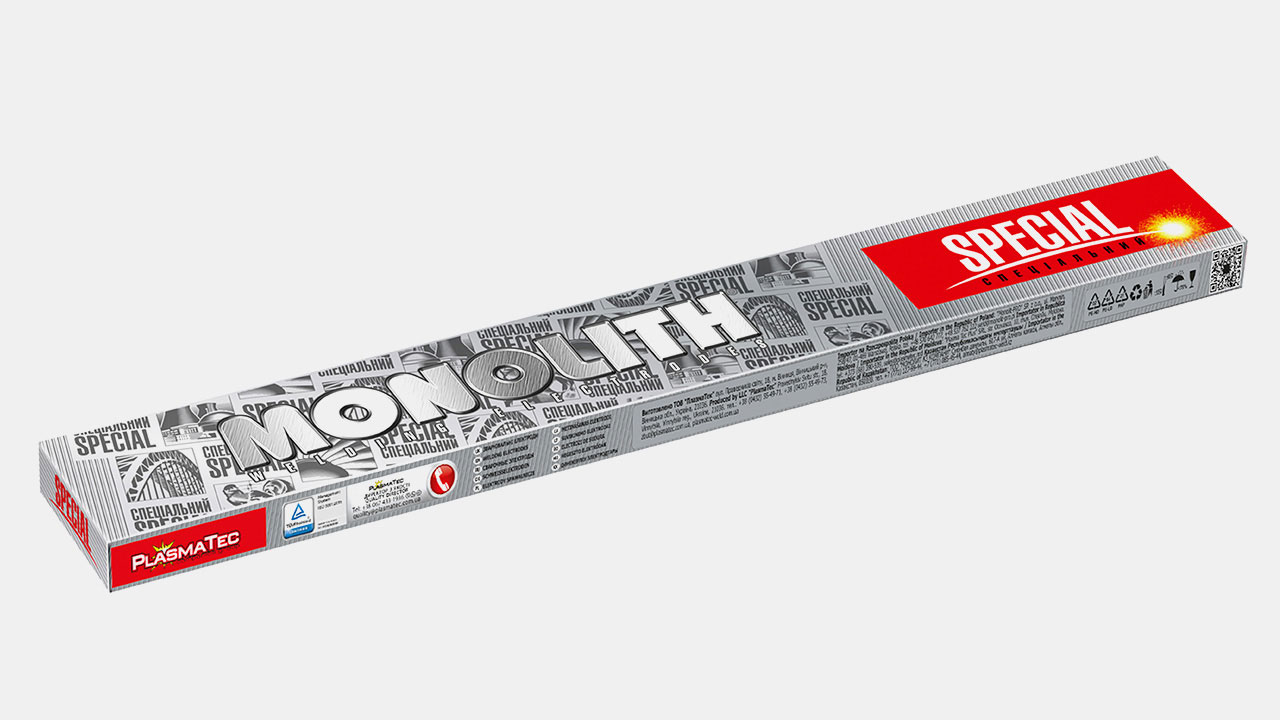

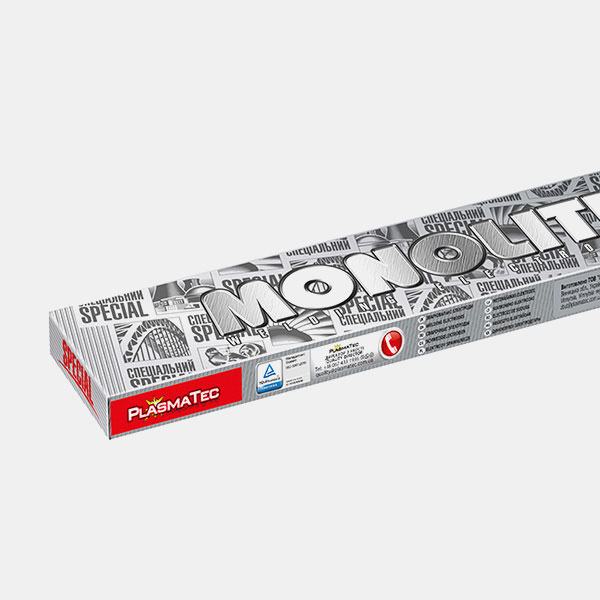

1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
Coating type
rutile
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.01
Mn
Manganese
0.88
Si
Silicon
0.76
P
Phosphorus
0.025
S
Sulfur
0.023
Cr
Chromium
18.08
Ni
Nickel
10.08
Mo
Molybdenum
0.04
Cu
Copper
0.6
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 618 (89)
  • Yield point, MPa 488 (70)
  • Relative elongation, % 40
Baking before welding
  • the permissible moisture content in the coating before use is not more than 0.2 %;
  • if the electrode coating is moistened above normal, dry for 60 minutes at 400±10°С (752±50°F).
Welding modes
 Welding current strength, A for electrodes with a diameter of, mm (in)
2.0 (5/64)2.5 (3/32)3.0 (1/8)3.2 (1/8)4.0 (5/32)
40 – 6050 – 8070 – 10080 – 11090 – 130

Welding Current: AC, DC+. Arc voltage of 23 – 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
