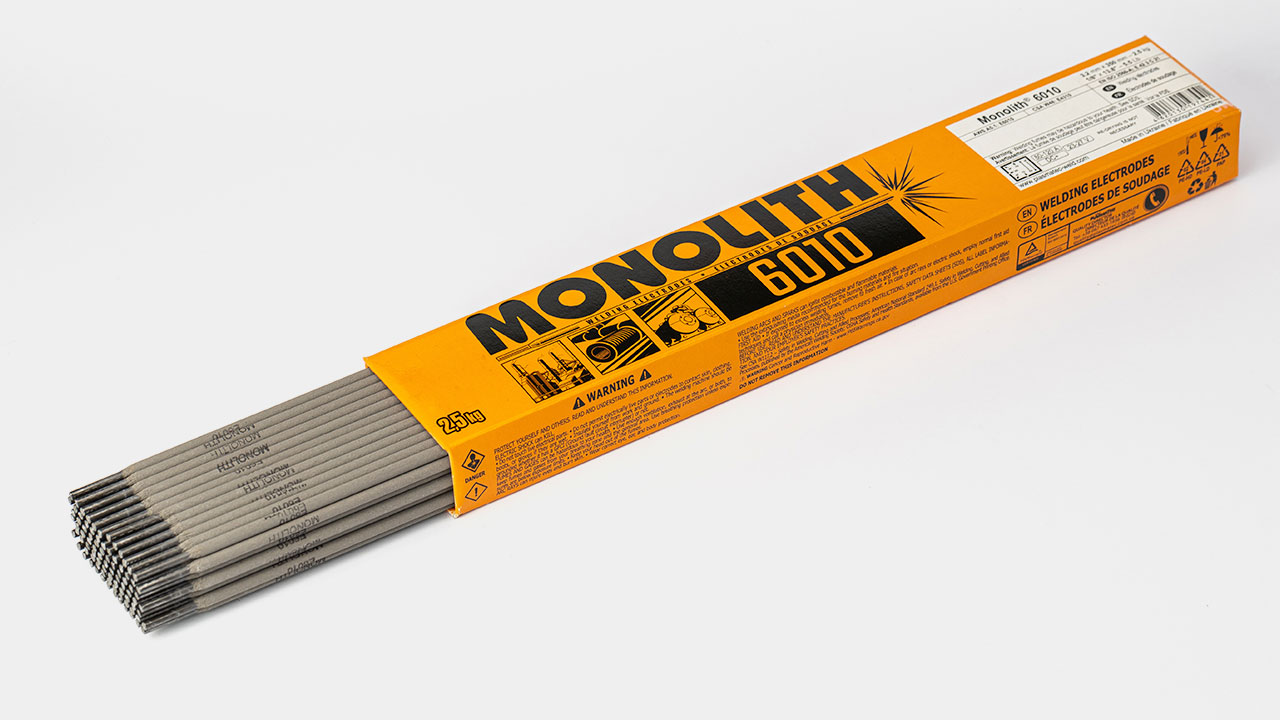

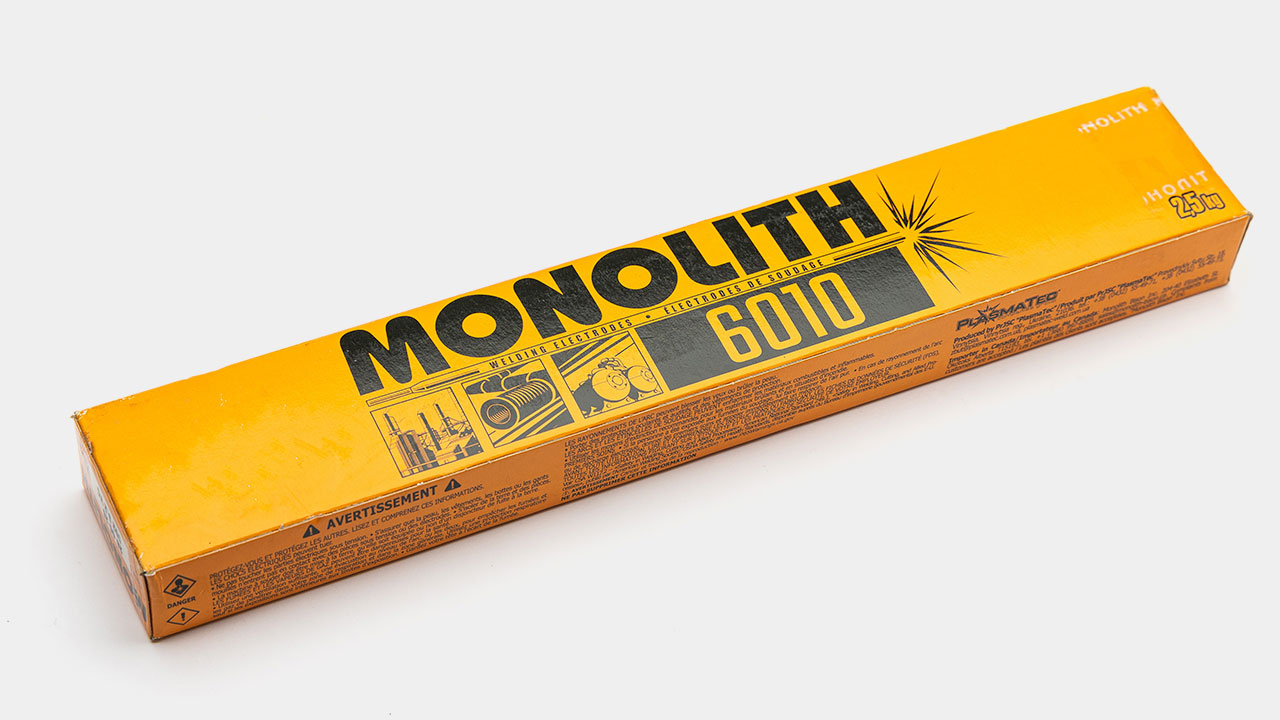

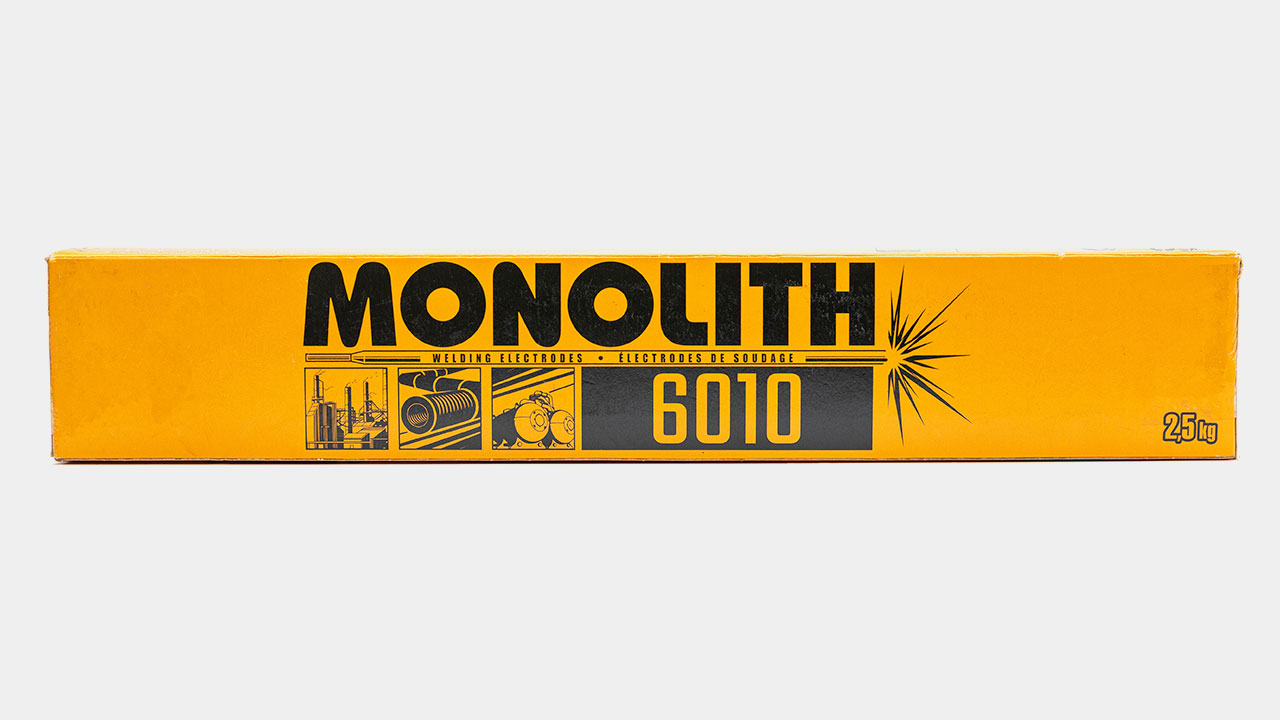

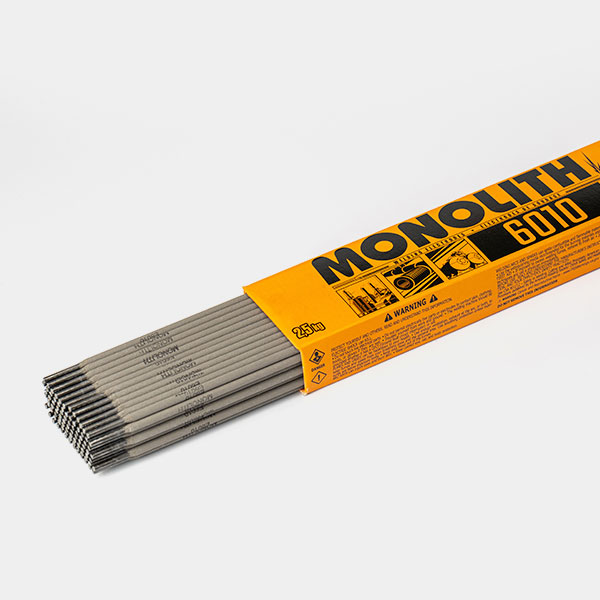

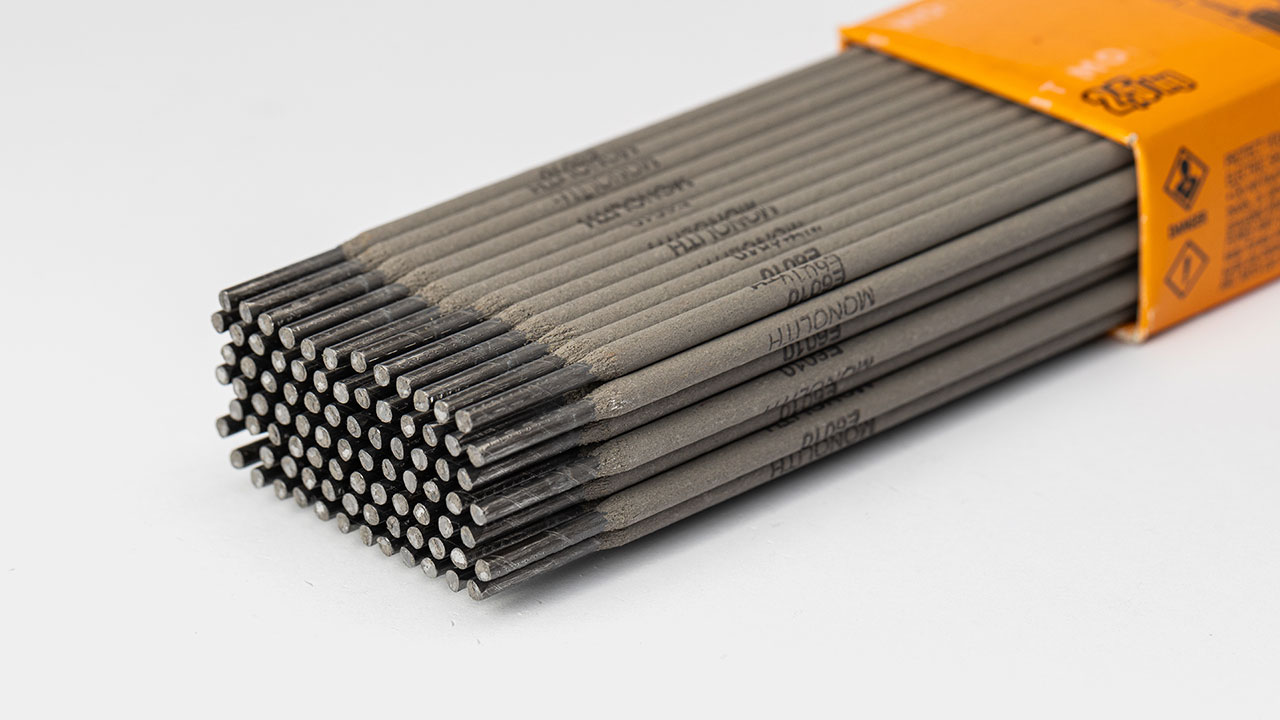

Welding electrodes Monolith 6010

AWS А5.1 / SFA-5.1: Е6010
CSA W48: E4310
EN ISO 2560-А-E: 42 3 С 21
Terms of use
Special properties
  • suitable for welding operation control in all special positions, provide deep arc penetration
  • effective for welding of moderately dirty, rust-covered or painted parts welding, which are difficult to be thoroughly cleaned before welding
  • characterized by high stability of arc burning, easy slag separation and excellent seam metal formation
  • recommended for welding of galvanized and coated steels
Specially designed for in-plant and cross-country pipe welding as well as welding in the sphere of shipbuilding construction, welding of general structures, bridges. Suitable for root run welding of pipelines of strength grades up to API 5LX80, as well as for filler and cover layers application for pipelines of strength grades up to API 5LX56
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,5 (3/32)300 (11,8)185-1872.5 (5.5)
3,2 (1/8)350 (13,8)95-972.5 (5.5)
4,0 (5/32)350 (13,8)129-1315 (11)
5,0 (3/16)350 (13,8)74-765 (11)
2.5 kg (5,5 lb) vacpack
6 cardboard packsper 15 kg (33 lb) bunch
67 bunches per 1 pallet
1005 kg (2211 lb) per 1 pallet
5 kg (11 lb) vacpack
4 cardboard packs per 20 kg (44 lb) bunch
50 bunches per 1 pallet
1000 kg (2200 lb) per 1 pallet
Coating type
high cellulose
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.11 - 0.15
Mn
Manganese
0.50 - 1.00
Si
Silicon
0.30 - 0.40
P
Phosphorus
0.006 - 0.020
S
Sulfur
0.004 - 0.020
Cr
Chromium
0.010 - 0.030
Ni
Nickel
0.010 - 0.030
Mo
Molybdenum
0.002 - 0.010
V
Vanadium
0.01 - 0.03
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 450 - 550 (65 - 80)
  • Yield point, MPa 400 - 450 (58 - 65)
  • Relative elongation, % 22 - 24
Baking before welding

NOT RECOMMENDED.

Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
2.5 (3/32)3.2 (1/8)4.0 (5/32)5.0 (3/16)
50 – 9080 – 120120 – 160150 – 180

Welding should be performed with direct current of reversed polarity “+” on an electrode with an arc voltage of 23 - 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
