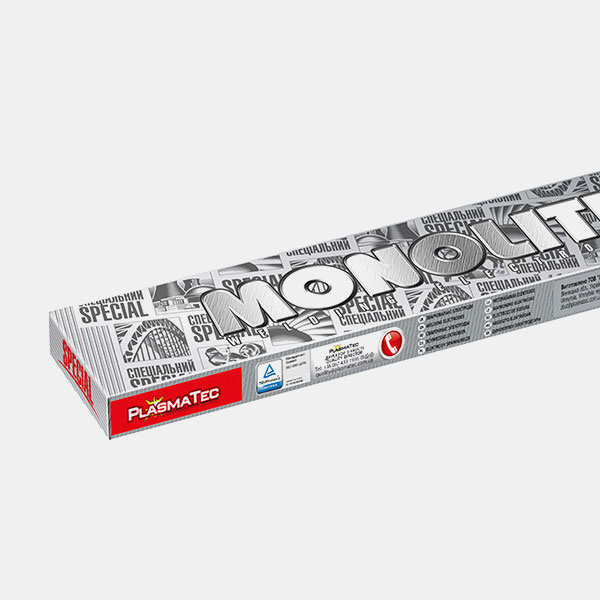

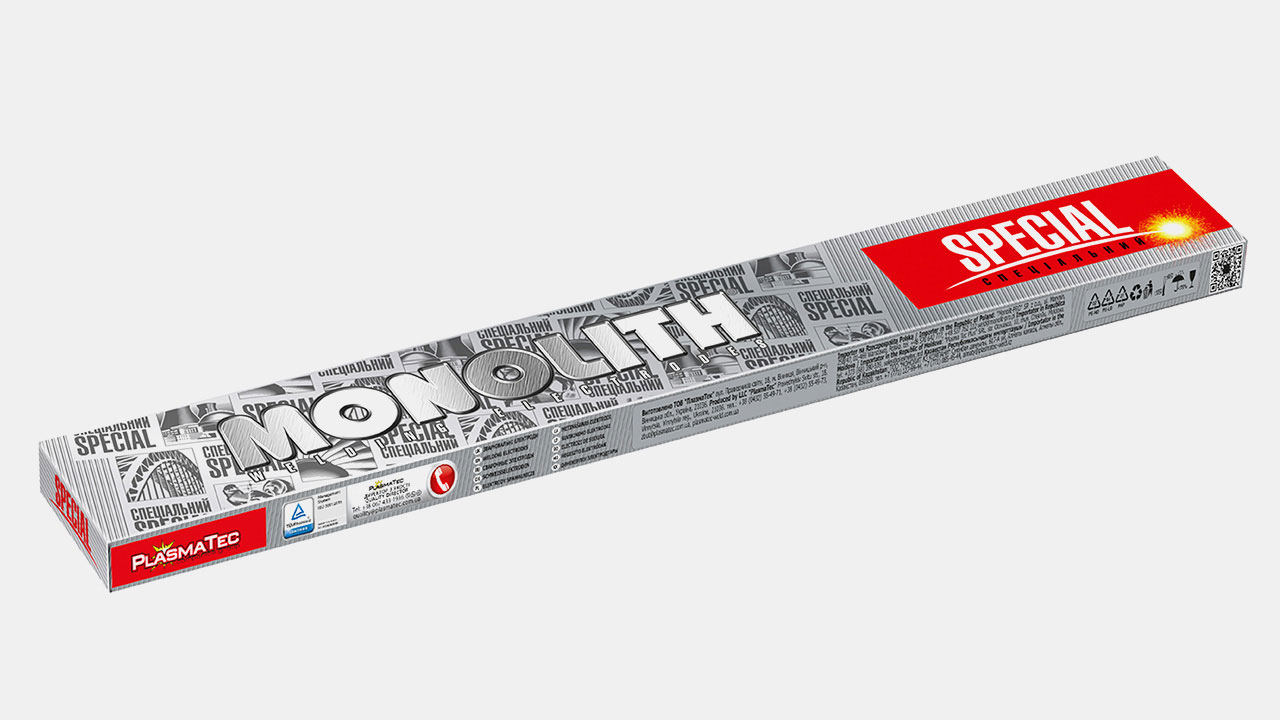

Welding electrodes Monolith E4043

AWS A5.3 E4043
EN ISO 18273: Al 4043 (AlSi5)
Terms of use
  • clean the welding area from dirt and oxide film
  • preheat heavy parts
  • when joining thick metal to thin part, preheat the heavier part
  • perform welding at high current on a short arc, ensuring rapid electrode advance
  • reduce the current during the welding process and as the base metal absorbs heat.
Special properties
  • The coating, formed by the pressing method, provides a long service life and increased resistance to moisture
Aluminum-silicon electrodes with 5% silicon content. Universal electrodes intended for welding cast, rolled and extruded aluminum and aluminum alloys. They are used for welding aluminum and its alloys such as Al-Si, Al-Mg, Al-Mg-Si, Al-Mn-Cu.
Package Weight
First select diameter
Packaging data
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
Position of seams during welding
PA
PB
PC
PF
PE
PD
