Welding electrodes HS-Fe1

EN 14700: E Z Fe1
Terms of use
  • it is recommended to hold the electrode close to a right angle;
  • perform surfacing with a short arc and the lowest possible current to prevent mixing with the base metal;
  • to achieve maximum wear resistance when working with low-carbon steels, it is necessary to apply at least 2 layers.
Special properties
  • high productivity and stable spray-metal transfer;
  • reduced critical current which allows working in field conditions without deterioration of process stability;
  • deposited metal can be processed by cutting without tempering, provided it cools in air or in a basalt blanket;
  • mechanical processing of tempered deposited metal - milling, drilling, turning (without restrictions);
  • improved cold cracks resistance due to the high homogeneity of the deposited metal;
  • possibility of reducing the calculated preheating temperature by 30...40%.
HS-Fe1 electrodes are designed for the deposition of strengthening layers that work in metal-to-metal abrasion environment in combination with heavy impact load conditions. Electrodes are used for surfacing of railway elements and parts, couplings, axles, shafts, etc. Electrodes provide highly productive welding process with with improved technological properties.
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
3,0 (1/8)350 (13,8)30 – 321 (2.2)
4,0 (5/32)450 (17,7)141 (2.2)

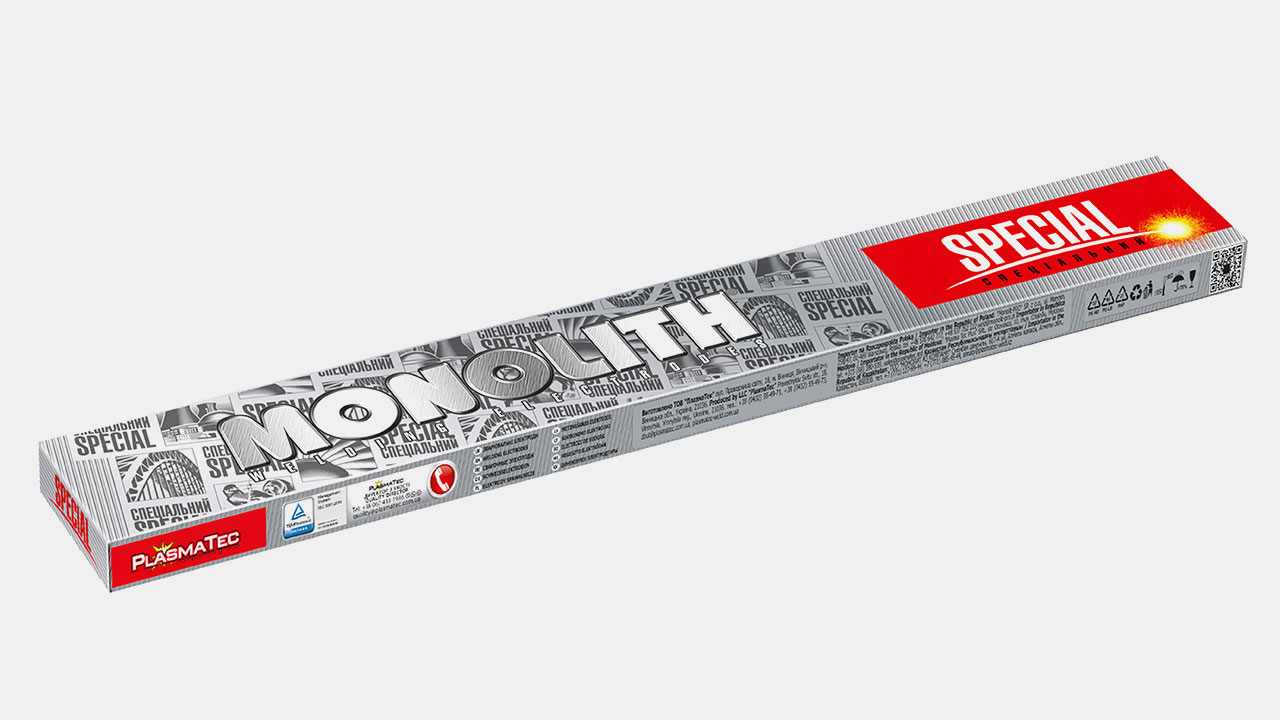

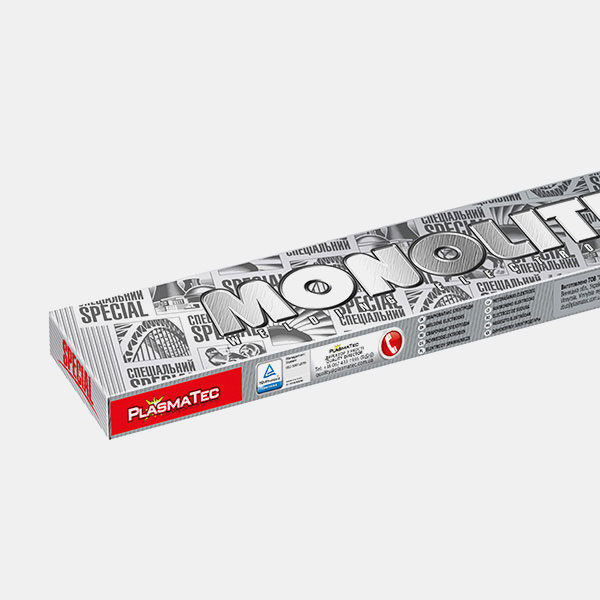

1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
Package Weight
First select diameter
Coating type
basic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.4
Mn
Manganese
1.78
Si
Silicon
0.14
P
Phosphorus
0.039
S
Sulfur
0.006
Cr
Chromium
0.82
Mo
Molybdenum
0.44
Baking before welding
  • the permissible moisture content in the coating before use is not more than 0.3 %;
  • if the electrode coating is moistened above normal, dry for 60 minutes at 300±10°С (572±50°F).
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
3.0 (1/8)4.0 (5/32)
90 – 120120 – 160

Welding Current: AC, DC+. Arc voltage of 23 – 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
