Welding electrodes Monolith 7024-1

AWS A5.1: E7024-1
EN ISO 2560-E 50 2 B 22 H
Terms of use

Designed for welding in all spatial positions except for vertical downward. Use with direct current (DC) and reverse polarity

Special properties

Ensures weld metal with high resistance to crystallization cracking and low hydrogen content. Welding should be performed with a short arc length on clean edges.

The electrodes are intended for manual arc welding of critical structures made of carbon and low-alloy steels with a tensile strength of up to 590 MPa, including structures operating at reduced temperatures.
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
3,0 (1/8)350 (13,8)95 – 962,5 (5,5)
3,2 (1/8)350 (13,8)91 – 922,5 (5,5)

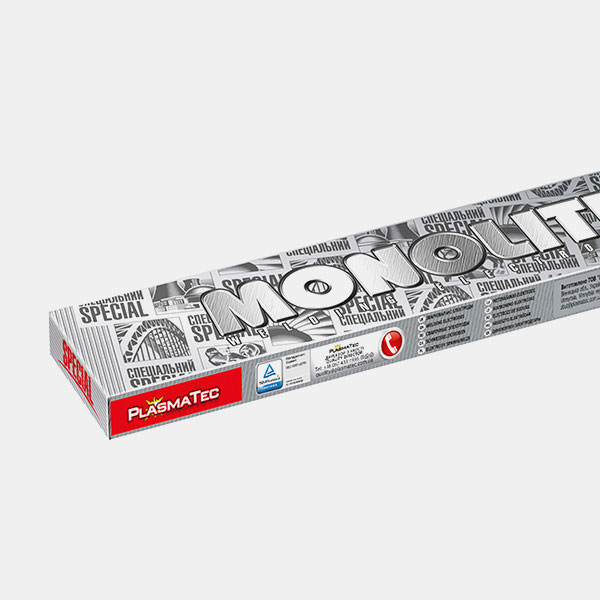

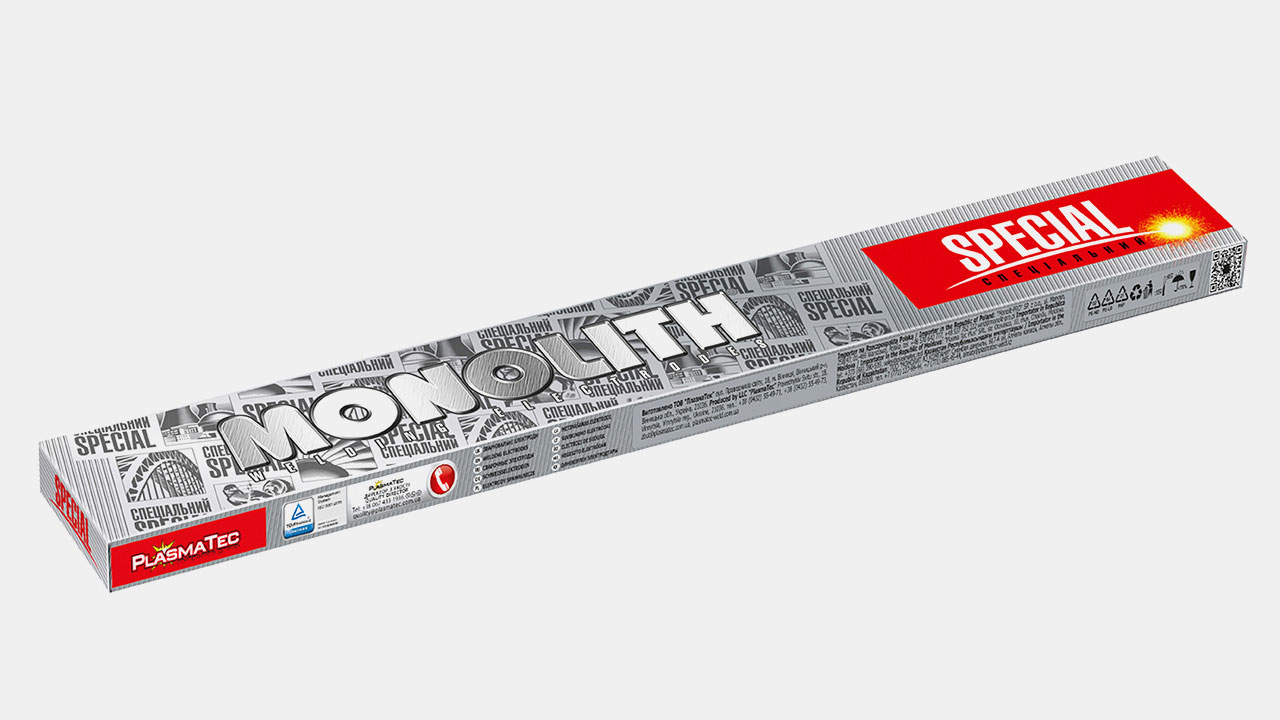

2,5 kg (5,5 lb) cardboard pack
8 packs per 20 kg (44 lb) bunch
50 bunches per 1 pallet
1000 kg (2200 lb) per 1 pallet
Package Weight
First select diameter
Coating type
basic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
≤ 0.13
Mn
Manganese
0.10 - 1.13
Si
Silicon
0.30 - 0.55
P
Phosphorus
≤ 0.030
S
Sulfur
≤ 0.030
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 560 - 720 (80 - 104)
  • Yield point, MPa 500 (72)
  • Relative elongation, % 18
Baking before welding
  • the permissible moisture content in the coating before use: no more than 0.3%;
  • if the electrode coating exceeds the allowable moisture level, dry for 60 minutes at 350-400°C (662-752°F).
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
3.0 (1/8)3.2 (1/8)
80 – 11090 – 130

Welding Current: AC, DC+ Arc voltage of 23 – 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
