Welding electrodes Monolith 9018-D3

AWS A5.5: E9018-D3
EN ISO 2560-A-E 50 A Mn Mo B 2 2 H5
Terms of use
  • suitable for welding in all spatial positions, except for vertical downward welding. Use direct current (DC) with reverse polarity;
  • welding should be performed with a short or very short arc length on clean edges.
Special properties

Provides weld metal with high resistance to cold and hot cracking, and low levels of diffusible hydrogen.

The electrodes are intended for manual arc welding of critical and highly critical structures made of alloy steels with increased and high strength, with a tensile strength of 850 MPa.
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
3,0 (1/8)350 (13,8)95 – 962,5 (5,5)
3,2 (1/8)350 (13,8)91 – 922,5 (5,5)

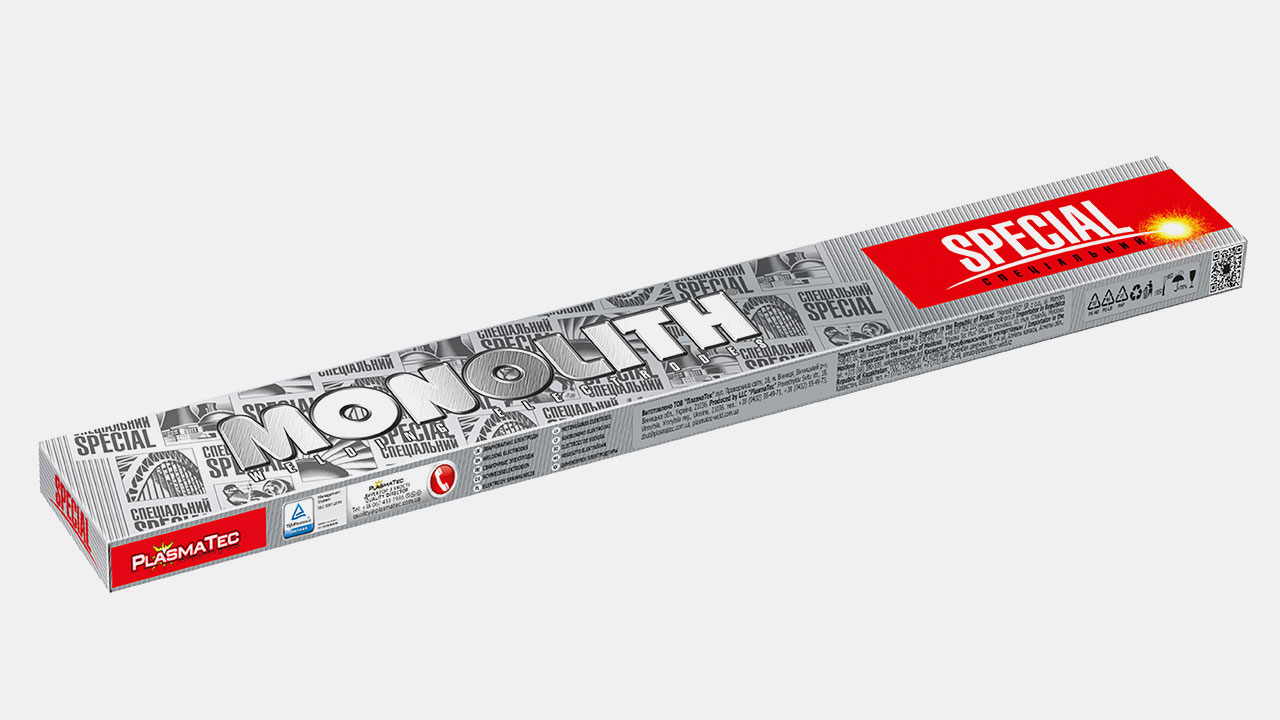

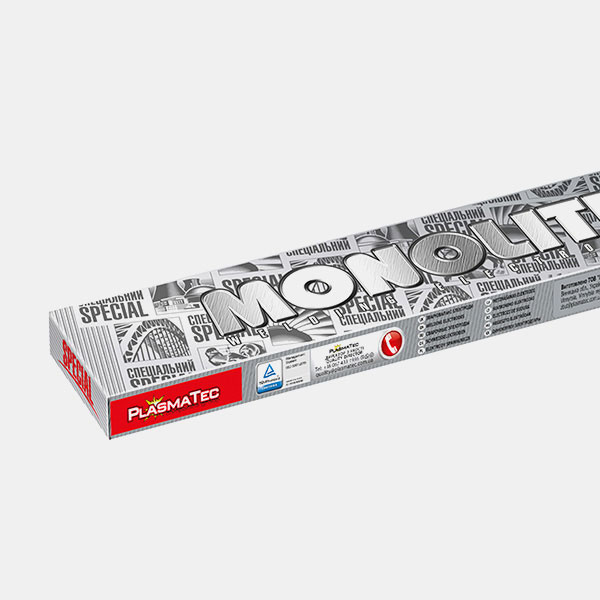

2,5 kg (5,5 lb) cardboard pack
8 packs per 20 kg (44 lb) bunch
50 bunches per 1 pallet
1000 kg (2200 lb) per 1 pallet



Package Weight
First select diameter
Coating type
basic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.10
Mn
Manganese
1.60
Si
Silicon
0.80
P
Phosphorus
0.030
S
Sulfur
0.020
Mo
Molybdenum
0.60
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 853 (123)
  • Yield point, MPa 576 (83)
  • Relative elongation, % 23
Baking before welding
  • the permissible moisture content in the coating before use: no more than 0.3%;
  • if the coating moisture level exceeds the norm, dry for 60 minutes at 300±10°C (572±50°F).
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
3.0 (1/8)3.2 (1/8)
80 – 12090 – 130

Welding should be performed with direct current of reversed polarity “+” on an electrode with an arc voltage of 23 - 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
