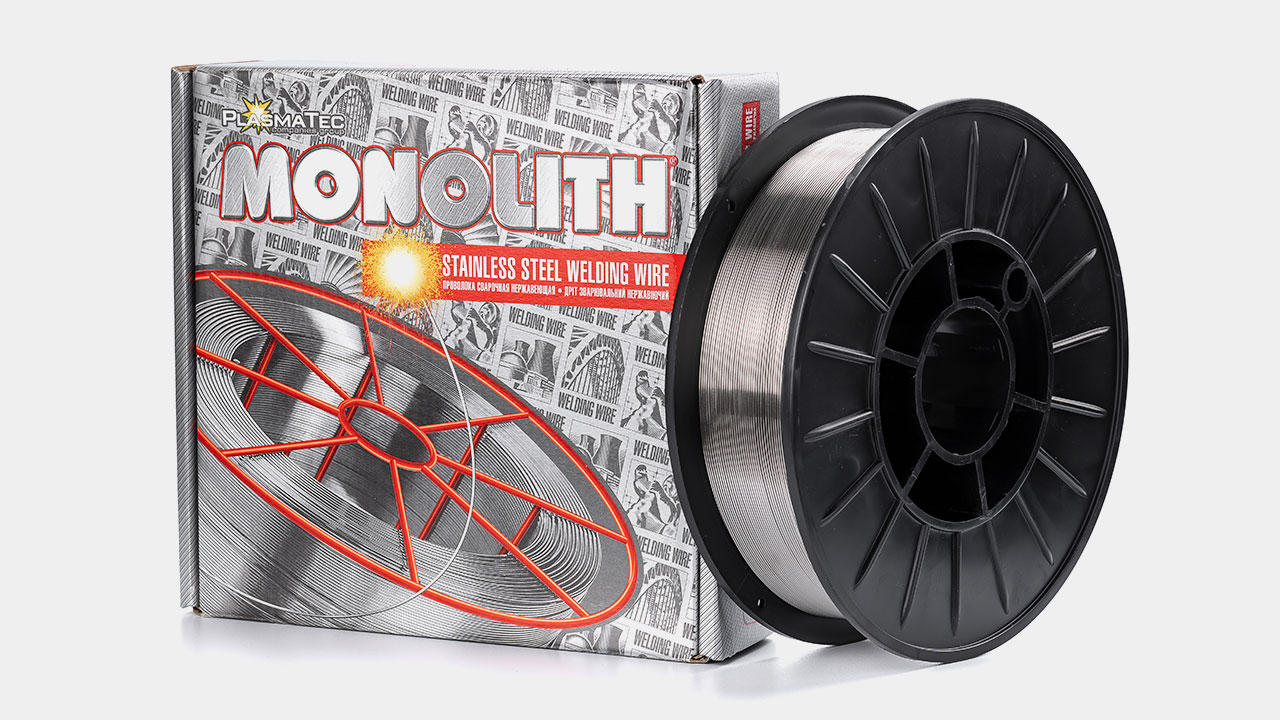

Stainless steel welding wire Monolith ER316LSi

AWS A5.9: ER316LSi
CSA W48: ER316LSi
EN ISO 14343-A-G 19 12 3 L Si
Terms of use
  • welding is recommended to be carried out in gas mixtures (Ar+CO2) with direct current of reverse polarity;
  • precision winding ensures steady wire feeding to the welding area;
  • increased wire rigidity allows the use of a torch with up to 3 m (118 in) line.
Special properties
  • the presence of molybdenum provides creep resistance in a halide atmosphere. It is slightly magnetic;
  • low carbon content, which reduces the possibilities of intergranular carbide precipitation, while increasing the resistance to intergranular corrosion without the use of stabilizers such as niobium or titanium;
  • good general corrosion resistance.
Monolith ER316LSi austenitic stainless steel welding wire with a low carbon content is designed for semi-automatic welding of all 300 series austenitic stainless steel, particularly 316 and 316L. It is used for: welding low-carbon molybdenum-bearing austenitic alloys; joining and surfacing of stainless steels type 316, 316L and 316Ti; applications as capweld for the clad side of plates having equivalent coating; applications for food processing and chemical industry; applications for household (e.g. hot water tanks), building (e.g. architectural and roofing) and ship building; applications where a very good corrosion resistance is required, such as in acid media a/o in chlorinated solutions.
Package Weight
First select diameter
Packaging data
BS 300/ D 300 spoolD 200 plastic spoolD 170 plastic spool
Ø 0.8 (.030'')Ø 0.8 (.030'')Ø 0.8 (.030'')
Ø 0.9 (.035'')Ø 0.9 (.035'')Ø 0.9 (.035'')
Ø 1.0 (.040'')Ø 1.0 (.040'')Ø 1.0 (.040'')
Ø 1.2 (.045'')Ø 1.2 (.045'')
Weight:Weight:Weight:
15 kg (33 lb)5 kg (11 lb)1 kg (2.2 lb)
  2.5 kg (5.5 lb)

Welding wire 0.8 mm (.030''), 1.0 mm (.040''), 1.2 mm (.045'') packed in 250 kg (551 lb) drums.



Coating type
сhromium-nickel
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.025
Mn
Manganese
1.80
Si
Silicon
0.80
P
Phosphorus
0.025
S
Sulfur
0.02
Cr
Chromium
19.00
Ni
Nickel
10.00
Mo
Molybdenum
2.50
Cu
Copper
0.50
Welding modes
Diameter, mm (in)Current strength, AVoltage, VProtective gas consumption, l / min
0.8 (.030'')50 - 15013 - 216 - 8
0.9 (.035'')75 - 20016 - 248 - 10
1.0 (.040'') 70 - 20016 - 248 - 10
1.2 (.045'')90 - 35019 - 348 - 12

Welding should be carried out with direct current of the reverse polarity (DC+)

Position of seams during welding
PA
PB
PC
PF
PE
PD
